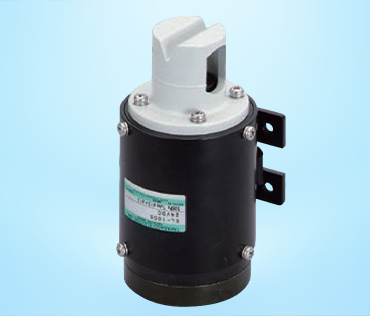

Pinch Valves
Sandur Fluid Controls Pvt. Ltd. offers premium-quality Pinch Valves engineered for efficient shut-off, regulation, and control of abrasive, corrosive, viscous, and particulate-laden media. Designed with a simple yet highly effective operating principle, pinch valves provide unobstructed flow, minimal maintenance, and exceptional resistance to wear, making them ideal for challenging industrial applications.
Our Pinch Valves are widely used in:
These valves utilize a flexible sleeve that is mechanically, pneumatically, or electrically pinched to control flow. Since the process media only comes into contact with the sleeve, the valve body remains protected from corrosion, abrasion, and contamination.
Available in manual, pneumatic, electric, and automated configurations, our pinch valves offer reliable performance, low operating costs, and long service life in demanding environments.
Pinch Valves are flow control devices that regulate the passage of liquids, slurries, powders, granules, and gases by compressing a flexible elastomer sleeve.
The valve operates by:
This design eliminates cavities, seats, and moving parts that are exposed to process media, making pinch valves ideal for abrasive and corrosive applications.
Common functions include:
The simple sleeve-based construction reduces maintenance requirements and ensures reliable operation in difficult process conditions.
Product Features :
Technical Specifications :
| Parameter | Specification |
|---|---|
| Product Type | Pinch Valve |
| Valve Size | DN10 to DN300 |
| Valve Operation | Manual / Pneumatic / Electric |
| Operating Pressure | Vacuum to 10 Bar |
| Temperature Range | -20°C to +120°C |
| Flow Media | Slurries / Liquids / Powders / Granules / Gases |
| Sleeve Material | Natural Rubber / EPDM / Nitrile / Silicone / Viton |
| Valve Body Material | Aluminum / Cast Iron / Stainless Steel |
| Connection Type | Flanged / Threaded / Tri-Clamp |
| Flow Direction | Bi-Directional |
| Leakage Rate | Bubble Tight Shut-Off |
| Control Interface | Manual / PLC / SCADA Compatible |
| Automation Support | Pneumatic Actuators / Electric Actuators |
| Mounting Orientation | Horizontal / Vertical |
Available Product Variants :
Manual Pinch Valves :
Features :
Applications :
Pneumatic Pinch Valves :
Features :
Applications :
Electric Pinch Valves :
Features :
Applications :
Heavy-Duty Slurry Pinch Valves :
Features :
Applications :
Food & Pharmaceutical Grade Pinch Valves :
Features :
Applications :
Product Benefits :
Applications :
Pinch Valves are extensively used across industrial sectors.
Industries We Serve :
Optional Features & Accessories :
Why Choose Our Pinch Valves?
Frequently Asked Questions (FAQ)?
A pinch valve controls flow by compressing a flexible sleeve to open, regulate, or stop media flow.
Slurries, powders, granules, liquids, gases, and abrasive materials.
Yes, since the process media only contacts the sleeve material.
Yes, pneumatic and electric actuator options are available.
Natural rubber, EPDM, Nitrile, Silicone, and Viton.
Yes, hygienic and FDA-compliant options are available.
Typically vacuum to 10 Bar, depending on the model.
Yes, they can operate effectively in either flow direction.
Replacement depends on media type and operating conditions, but sleeves generally offer long service life.
Yes, complete engineering and application support is provided.
