Dostec - 50

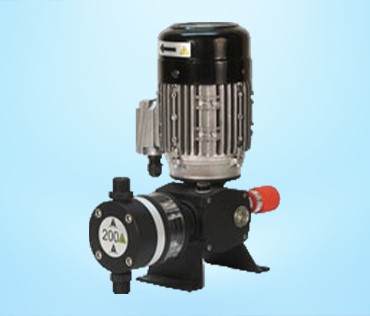

The Dostec-50 Motor Driven Dosing Pump from Sandur Fluid Controls Pvt. Ltd. is a powerful and precision-engineered chemical dosing pump designed for medium and high-capacity industrial dosing applications. Built for continuous-duty performance, the Dostec-50 offers superior dosing accuracy, rugged construction, and reliable operation under demanding industrial conditions.
The pump is ideal for water treatment plants, chemical industries, pharmaceutical applications, power plants, cooling towers, oil & gas industries, fertilizer plants, and industrial process systems requiring accurate and controlled chemical dosing.
The Dostec-50 is a motor driven positive displacement metering pump developed for accurate fluid injection and high-pressure chemical dosing applications. Designed with robust mechanical construction and advanced engineering, the pump ensures consistent dosing performance even in continuous industrial operation.
Available in diaphragm and plunger type configurations, the Dostec-50 can safely handle corrosive, abrasive, viscous, and hazardous chemicals while maintaining excellent dosing precision and operational efficiency.
The pump supports automation integration and can be supplied as a standalone unit or as part of a complete skid-mounted dosing system.
Product Features :
Technical Specifications :
| Parameter | Specification |
|---|---|
| Model | Dostec-50 |
| Pump Type | Motor Driven Positive Displacement Dosing Pump |
| Pump Configuration | Diaphragm / Plunger Type |
| Flow Rate Range | Up to 50 LPH |
| Maximum Pressure | Up to 50 Kg/cm² |
| Dosing Accuracy | ±1% |
| Motor Power | 0.25 HP to 1.5 HP |
| Speed Control | Manual / VFD Controlled |
| Power Supply | 230V / 415V AC |
| Drive Type | Electric Motor Driven |
| Wetted Parts Material | PP / PVDF / SS316 |
| Diaphragm Material | PTFE |
| Plunger Material | SS316 / Ceramic |
| Valve Ball Material | Ceramic / SS316 |
| Seal Material | PTFE / Viton |
| Protection Class | IP55 / IP65 |
| Operating Temperature | Up to 80°C |
| Mounting Type | Base Mounted / Skid Mounted |
| Operating Mode | Continuous Duty |
| Automation Compatibility | PLC / SCADA Compatible |
Product Advantages :
Applications :
The Dostec-50 dosing pump is suitable for a wide range of industrial applications.
Material of Construction :
| Component | Available Materials |
|---|---|
| Pump Head | PP / PVDF / SS316 |
| Diaphragm | PTFE |
| Plunger | SS316 / Ceramic |
| Valve Ball | Ceramic / SS316 |
| Valve Seat | PTFE |
| Seals / O-Rings | Viton / PTFE |
Industries We Serve :
Optional Accessories :
Why Choose Dostec-50 Dosing Pumps?
Frequently Asked Questions (FAQ)?
The Dostec-50 is used for accurate chemical dosing in industrial fluid handling and process applications.
The pump can handle acids, alkalis, chlorine solutions, solvents, polymers, and various industrial chemicals depending on material compatibility.
The Dostec-50 offers flow rates up to 50 LPH.
The pump can handle pressures up to 50 Kg/cm².
The pump provides dosing accuracy up to ±1%.
Yes, the pump is designed for continuous industrial duty.
Diaphragm models offer leak-free operation, while plunger models are suitable for higher pressure applications.
Yes, PLC, SCADA, and VFD integration options are available.
Yes, genuine spare parts and technical support are available.
Yes, complete customized skid-mounted dosing systems are available.
