Multifetric

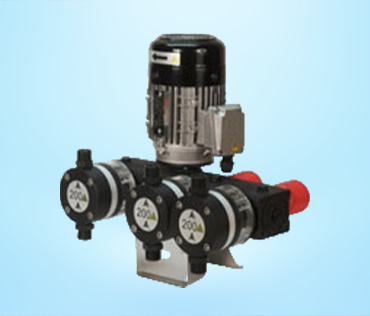

The Multifetric Dosing Pump System from Sandur Fluid Controls Pvt. Ltd. is an advanced multi-parameter chemical dosing solution designed for automated and accurate dosing of multiple chemicals in industrial process applications.
Engineered for intelligent fluid control, the Multifetric system integrates multiple dosing pumps, digital controllers, sensors, and automation features into a compact and efficient dosing package. The system is ideal for water treatment plants, RO systems, cooling towers, chemical industries, pharmaceuticals, food processing industries, and industrial process automation.
The Multifetric system ensures precise dosing, reduced chemical wastage, reliable process control, and seamless integration with modern industrial automation systems.
The Multifetric system is a fully integrated multi-chemical dosing system capable of monitoring and controlling multiple process parameters simultaneously. The system supports automatic dosing based on pH, ORP, conductivity, flow rate, chlorine levels, and other process signals.
Designed for continuous industrial operation, the Multifetric system combines intelligent digital control technology with reliable dosing pump mechanisms to ensure stable and accurate chemical injection.
The system can be customized according to application requirements and supplied as a skid-mounted turnkey dosing solution.
Product Features :
Technical Specifications :
| Parameter | Specification |
|---|---|
| Product Type | Multi-Parameter Dosing System |
| Dosing Type | Automatic Multi-Chemical Dosing |
| Pump Type | Electromagnetic / Motor Driven |
| Number of Dosing Pumps | 2 to 8 Pumps (Customizable) |
| Flow Rate Range | As Per Application Requirement |
| Maximum Pressure | Up to 20 Kg/cm² |
| Dosing Accuracy | ±1% |
| Control Type | Microprocessor Based Digital Controller |
| Display Type | Digital LCD / Touch Screen |
| Input Signals | pH / ORP / Conductivity / Flow / Chlorine |
| Analog Input | 4–20 mA |
| Communication Protocol | PLC / SCADA Compatible |
| Power Supply | 230V / 415V AC |
| Wetted Materials | PP / PVDF / SS316 |
| Diaphragm Material | PTFE |
| Protection Class | IP65 |
| Mounting Type | Skid Mounted |
| Operating Mode | Automatic / Manual |
| Operating Temperature | Up to 50°C |
| System Configuration | Fully Customizable |
System Components :
The Multifetric system may include :
Applications :
The Multifetric system is widely used in industrial process automation and water treatment applications.
Benefits of Multifetric Systems :
Material of Construction :
| Component | Available Materials |
|---|---|
| Pump Head | PP / PVDF / SS316 |
| Diaphragm | PTFE |
| Tanks | HDPE / PP |
| Piping | PVC / UPVC / SS316 |
| Valve Ball | Ceramic / SS316 |
| Seals / O-Rings | Viton / PTFE |
Industries We Serve :
Optional Features & Accessories :
Why Choose Multifetric Systems?
Frequently Asked Questions (FAQ)?
The Multifetric system is an automated multi-parameter chemical dosing and process control system.
The system can monitor pH, ORP, conductivity, flow rate, chlorine level, and other process parameters.
The system can support 2 to 8 dosing pumps or more based on application requirements.
Yes, the system supports fully automated dosing based on sensor feedback.
Yes, the system is compatible with PLC and SCADA integration.
Water treatment, chemical processing, pharmaceuticals, food processing, cooling towers, and many industrial applications.
PP, PVDF, SS316, PTFE, HDPE, and other chemical-resistant materials are available.
Yes, complete customization is available based on process requirements.
Yes, genuine spare parts, sensors, and technical support are available.
Yes, optional GSM, IoT, and SCADA remote monitoring features are available.
