Motor Driven Dosing Pump Multifertic
Diaphragm & Piston type
The MultiFertic® injection pump are heavy duty, high precision pumps for chemicals products and additives, made up of one driving module and 1 to 4 injection modules each having capacities of 25, 50, 100, 200, 300, and 500 l/h
The same injector can be connected several injection modules to apportion different products (INDEPENDENT INJECTION) or to increase the injection flow.By increasing the number of modules in the same injector, a higher flow regularity is obtained, whereby in the 4 modules model an actually continuous flow is obtained.
- Aluminium Die-cast body
- Maintaince free
- 10% to 100% Stroke Length Adjustment
- Up to four different modules can be added, which can be piston, diaphragm or both
- Option for connect Variable Frequency Drive for providing 4-20 mA
Material of construction
Piston: Polyethylene or Ceramic (Piston pumps)
Cylinder: Polyethylene, Stainless steel or PVDF ( Piston pumps)
Diaphragm: Teflon (Direct Diaphram Pumps)
| MF 1 | MF 2 | ||||||||
Piston |
MODULE |
FLOW | PRESSRE Bars |
MODULE |
FLOW | PRESSURE Bars |
|||
| l/h | GPH | l/h | GPH | ||||||
| MI1 -25 | 25 | 7 | 15 | MI2 -50 | 50 | 13 | 15 | ||
| MI1 -50 | 50 | 13 | 15 | MI2 -100 | 100 | 26 | 15 | ||
| MI1 -100 | 100 | 26 | 8 | MI2 -200 | 200 | 53 | 8 | ||
| MI1 -150 | 159 | 39 | 5 | MI2 -300 | 300 | 79 | 5 | ||
| MI1 -250 | 250 | 65 | 3 | MI2 -500 | 500 | 132 | 3 | ||
| MFD 1 | MFD 2 | ||||||||
Membrane |
MODULE |
FLOW | PRESSURE Bars |
MODULE |
FLOW | PRESSURE Bars |
|||
| l/h | GPH | l/h | GPH | ||||||
| MID1 -25 | 25 | 7 | 10 | MID2 -50 | 50 | 13 | 10 | ||
| MID1 -50 | 50 | 13 | 10 | MID2 -100 | 100 | 26 | 10 | ||
| MID1 -100 | 100 | 26 | 6 | MID2 -200 | 200 | 53 | 6 | ||
| MID1 -150 | 150 | 39 | 4 | MID2 -300 | 300 | 79 | 4 | ||
HYDRAULIC
Connections: M (3/4")
ELECTRICAL
Voltage: 230 / 400 Vac 3ph 50/60Hz, 110/230 Vac 1ph 50/60Hz, 12/24Vdc
Power: 0.37 Kw (0.5 Hp)
Protection: IP55 clase F
MATERIALS
Cylinder: P.P / AISI 316 / PVDF / PTFE
Diaphragm: Elastomer base reinforced with fiber and P.T.F.E clothing
Piston: Ceramic / PEUHMW
Sealing: FPM
Valve (body): P.P / AISI 316 / PVDF / PTFE
Valve (ball): glass / glass borosilicate / Ceramic
Block: Aluminium cast

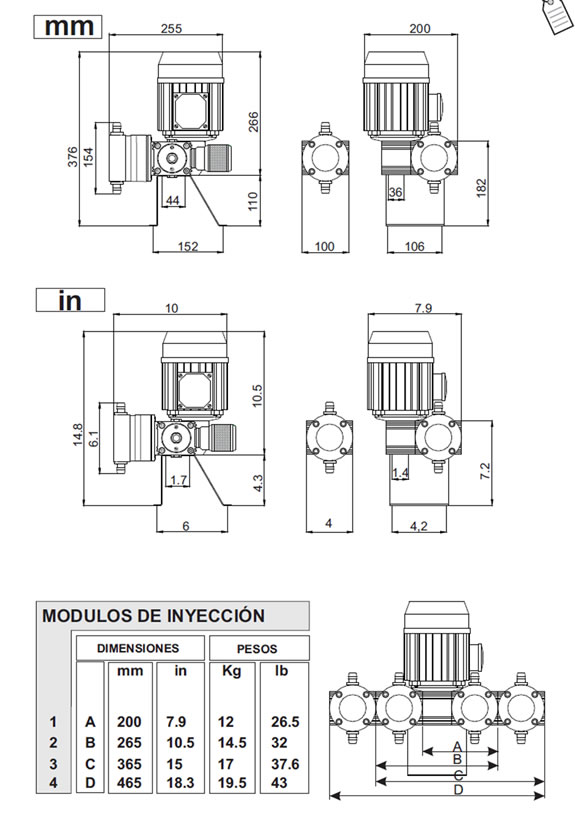

WEIGHT AND DIMENSIONS
Weight:
One module: 12 kg (26.5lb)
Two modules: 14.5 kg (32lb)
Three modules: 17 kg (37.6lb)
Four modules: 19,5kg (43lb)
